STUNNING HEADPHONES DRIVER, MADE BY STAX.
FULLY TESTED & IN PERFECT WORKING ORDER.
AN ABSOLUTE DELIGHT TO OWN.
THIS CAME IN AS PART EX, THEY WERE ORIGINALLY PURCHASED NEW IN THE YEAR 2023, FOLLOWED BY ME PURCHASING THEM IN 2024. PREVIOUS OWNER HAD BARELY USED THEM. AND THEY HAVE HAD A FULL TEST WITH ME. SO THIS REALLY IS IN FABULOUS CONDIITON.
I ALSO HAVE THE STAX SR-007 MK2 ELECTROSTATIC HEADPHONES FOR SALE IN MY OTHER LISTING.
BASIC SPECIFICATIONS AND WHATS INCLUDED:

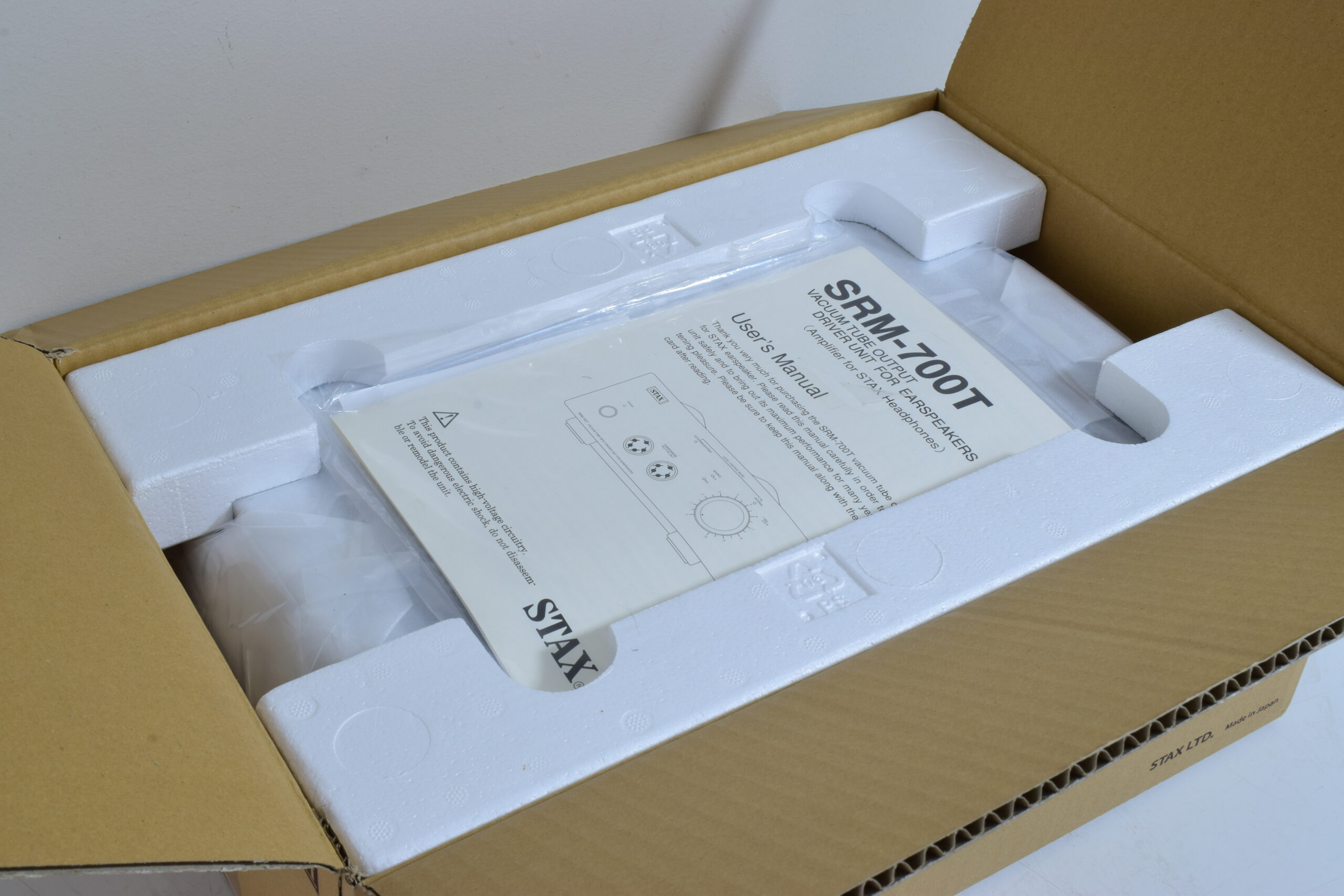

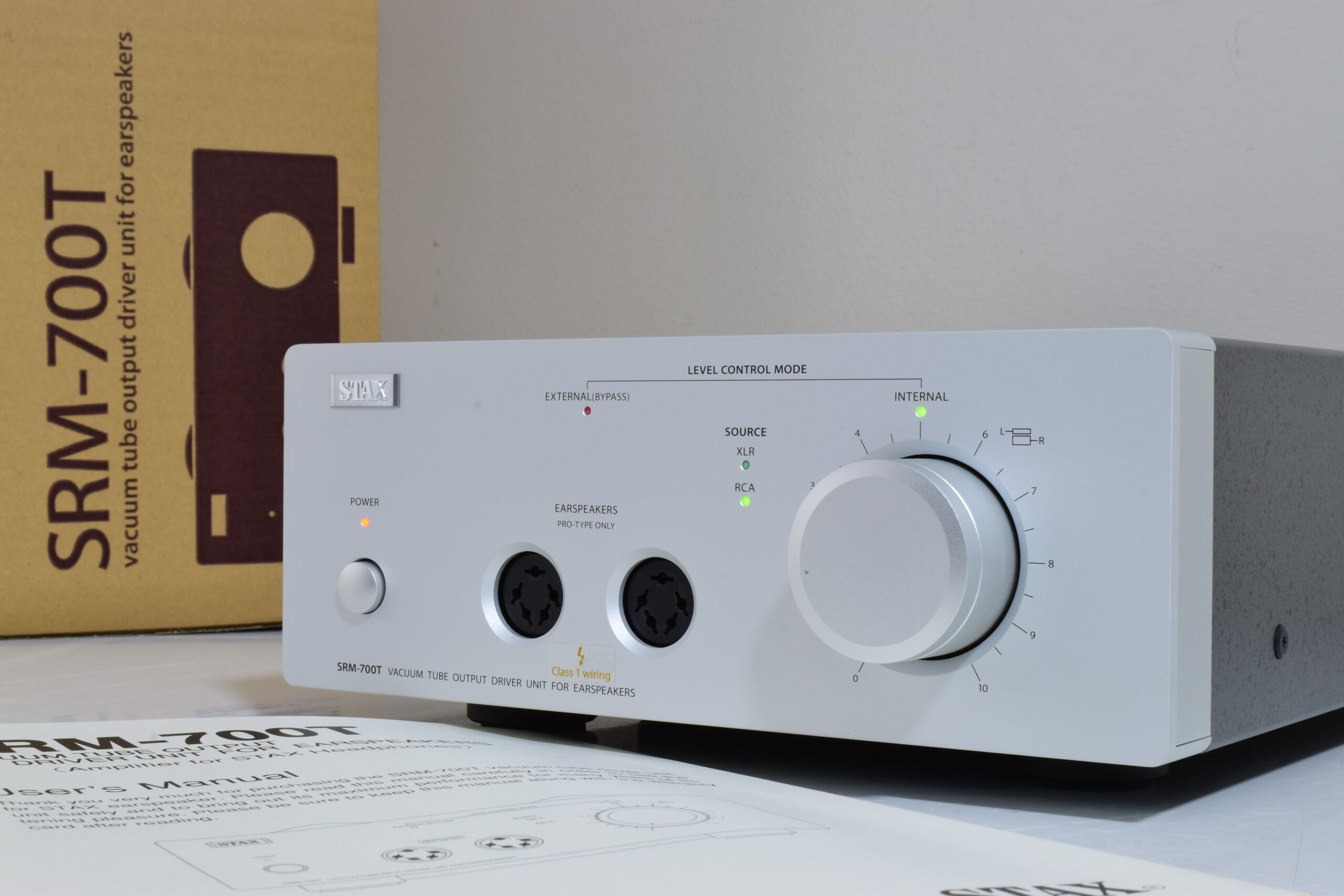

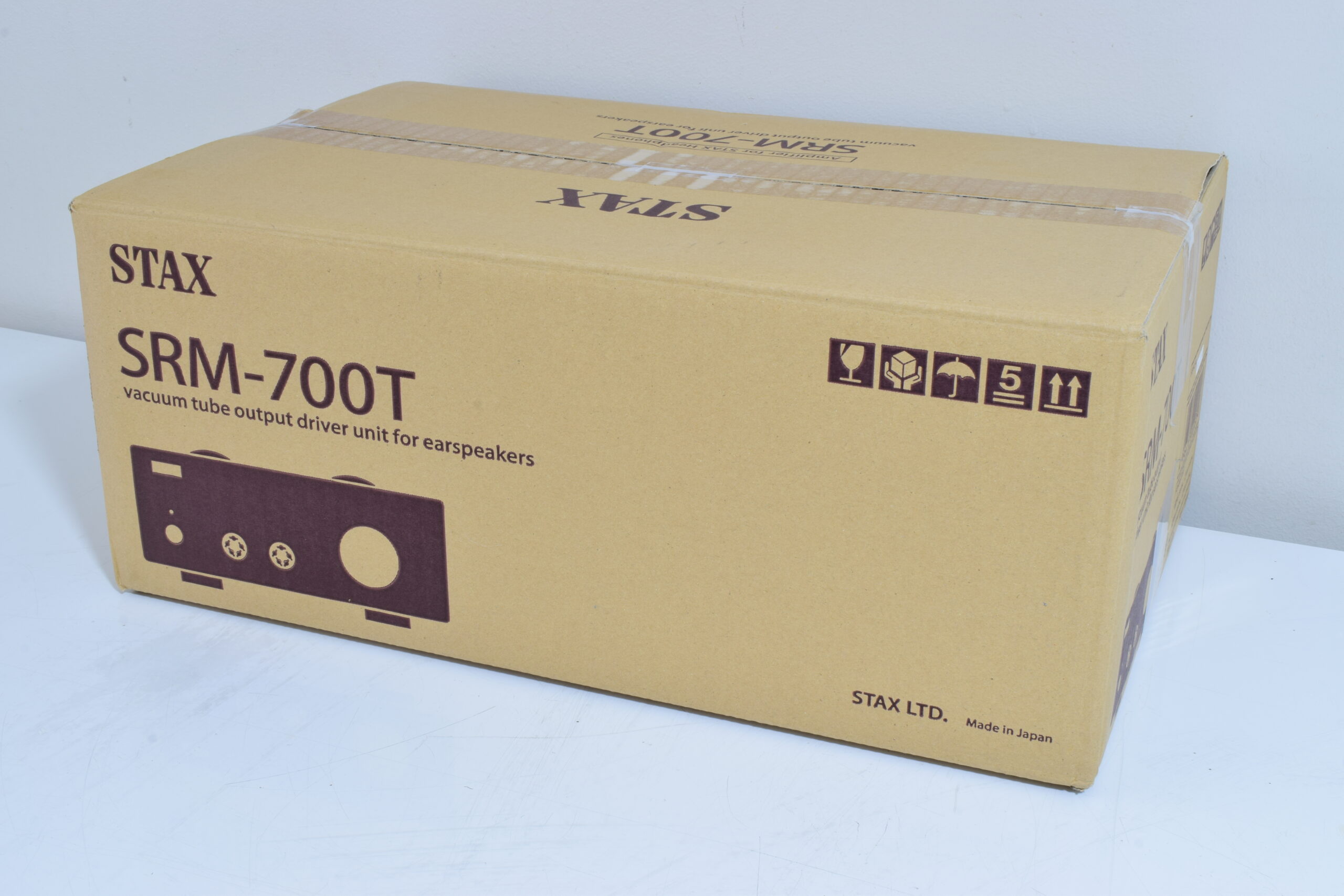

THE UNIT COMES BOXED WITH INTERNAL PACKAGING, MANUAL BOOKLET AND A STANDARDPOWER CABLE. NOTHING MORE.
A HYBRID ELECTROSTATIC HEADPHONE DRIVER. INSPIRED BY THE FLAGSHIP MODEL SRM-T8000.
THE 700T USES SOLID-STATE FET AS A DRIVER STAGE AND VACUUM TUBE AS THE OUTPUT STAGE.
THE FIRST STAGE IS A CUSTOM-MADE LOW-NOISE DUAL FET WHILE THE SECOND STAGE IS CLEAR AND HIGH SLEW-RATE VACUUM TUBE 6SN7. THE TUBE OUTPUT OFFERS WARM AND SPACIOUS MUSIC REPRODUCTION
NON-INDUCTIVE WINDING RESISTORS WITH THE LEAST INDUCTANCE
HIGH-DEFINITION FILM CAPACITORS ARE USED
HAND SELECTED MATCHING FET
VOLUME CONTROL IS EMI SHIELDED
BYPASS VOLUME CONTROL SWITCHING

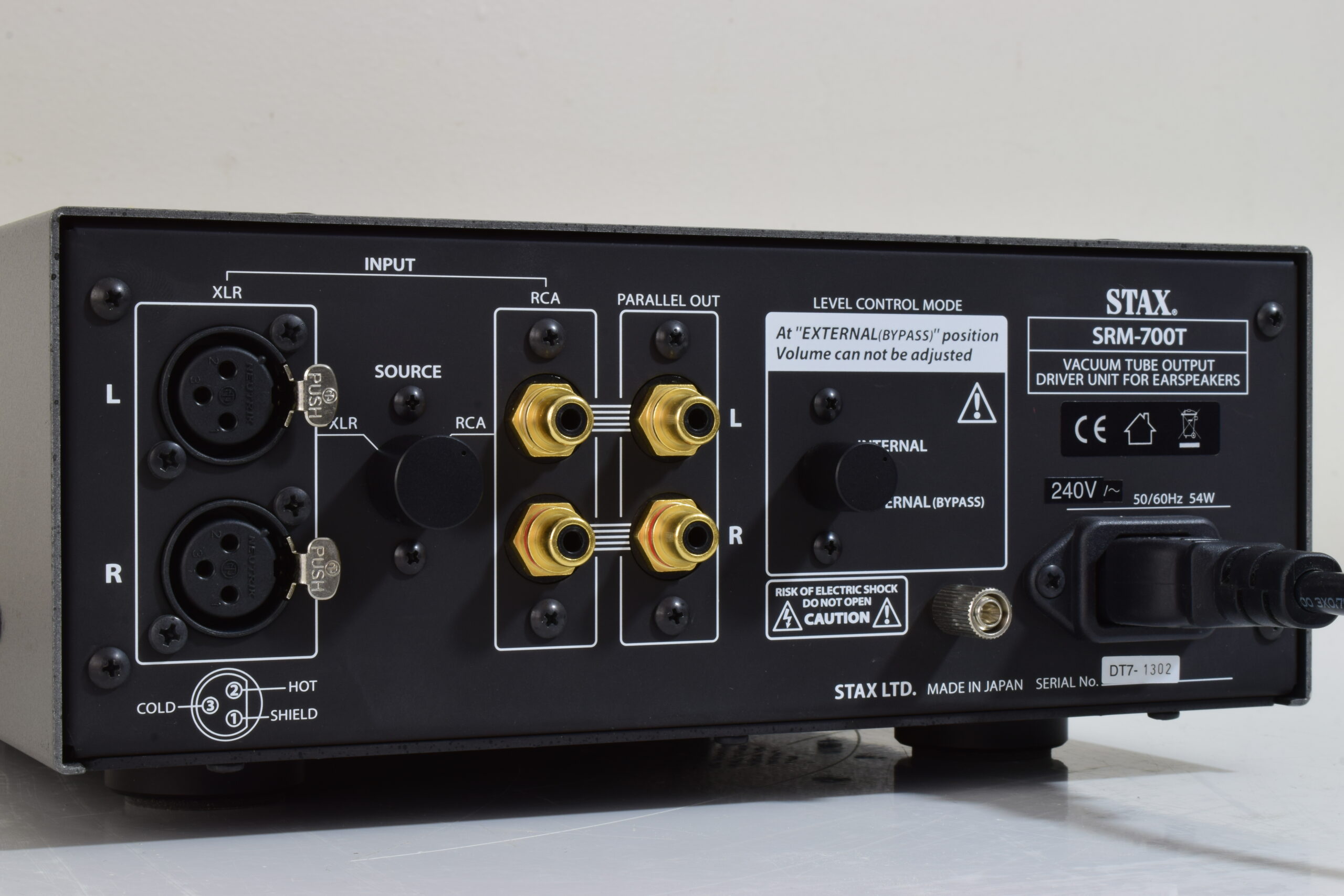

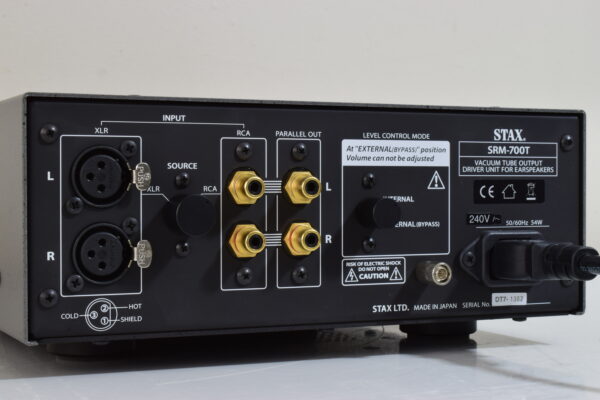

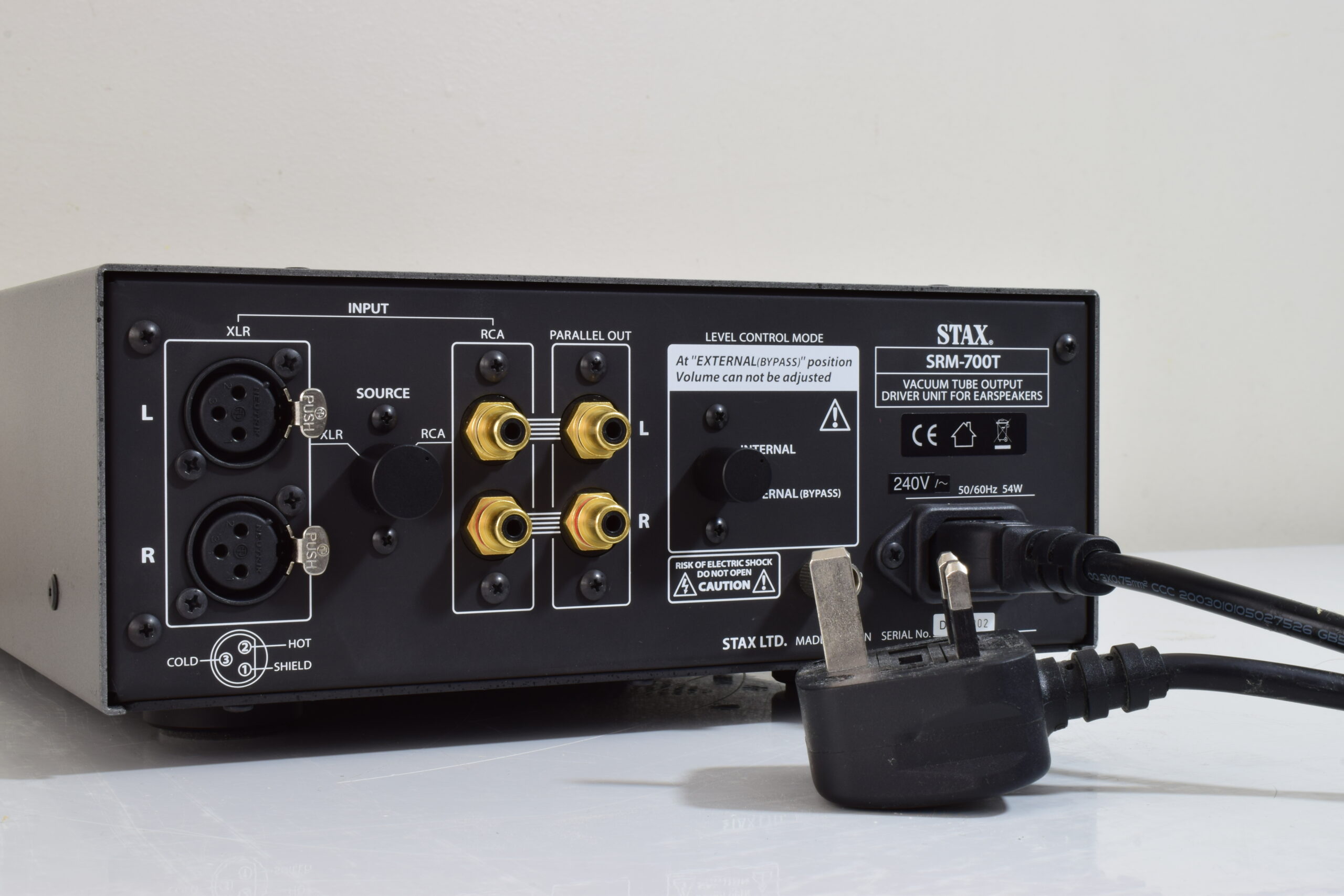

SWITCHABLE RCA AND XLR INPUTS. RCA PARALLEL OUT.
NEWLY DEVELOPED LARGE-SIZED ALUMINUM INSULATOR COMBINED WITH NEW VIBRATION-PROOF MATERIAL AND HIGH FRICTIONAL COEFFICIENT (GRIP POWER) HAVE BEEN EMPLOYED.
TYPE: FET INPUT + VACUUM TUBE OUTPUT HYBRID DC AMPLIFICATION DRIVER UNIT
VACUUM TUBE: 6SN7 X2
FREQUENCY RESPONSE: DC – 100KHZ (WITH ONE SR-009S)
GAIN: 60DB
HARMONIC DISTORTION: 0.01% OR LESS (1KHZ/100VRMS OUTPUT)
INPUT IMPEDANCE: 50KΩ (RCA), 50KΩX 2 (XLR)
MAXIMUM OUTPUT VOLTAGE: 340VRMS (1KHZ)
BIAS VOLTAGE: PRO 580V
OPERATING TEMPERATURE / HUMIDITY: 0 TO 35 DEGREES C / LESS THAN 90% (NON CONDENSING)
INPUT TERMINAL: RCA X 1, XLR X 1
OUTPUT: RCA PARALLEL OUTPUT TERMINAL
POWER CONSUMPTION: 54W
DIMENSION: 240 W X 103 H X 393 D MM (MAXIMUM PROTRUDING PORTION INCLUDED)
WEIGHT: 5.7KG
SERIAL NUMBER – DT7 1302

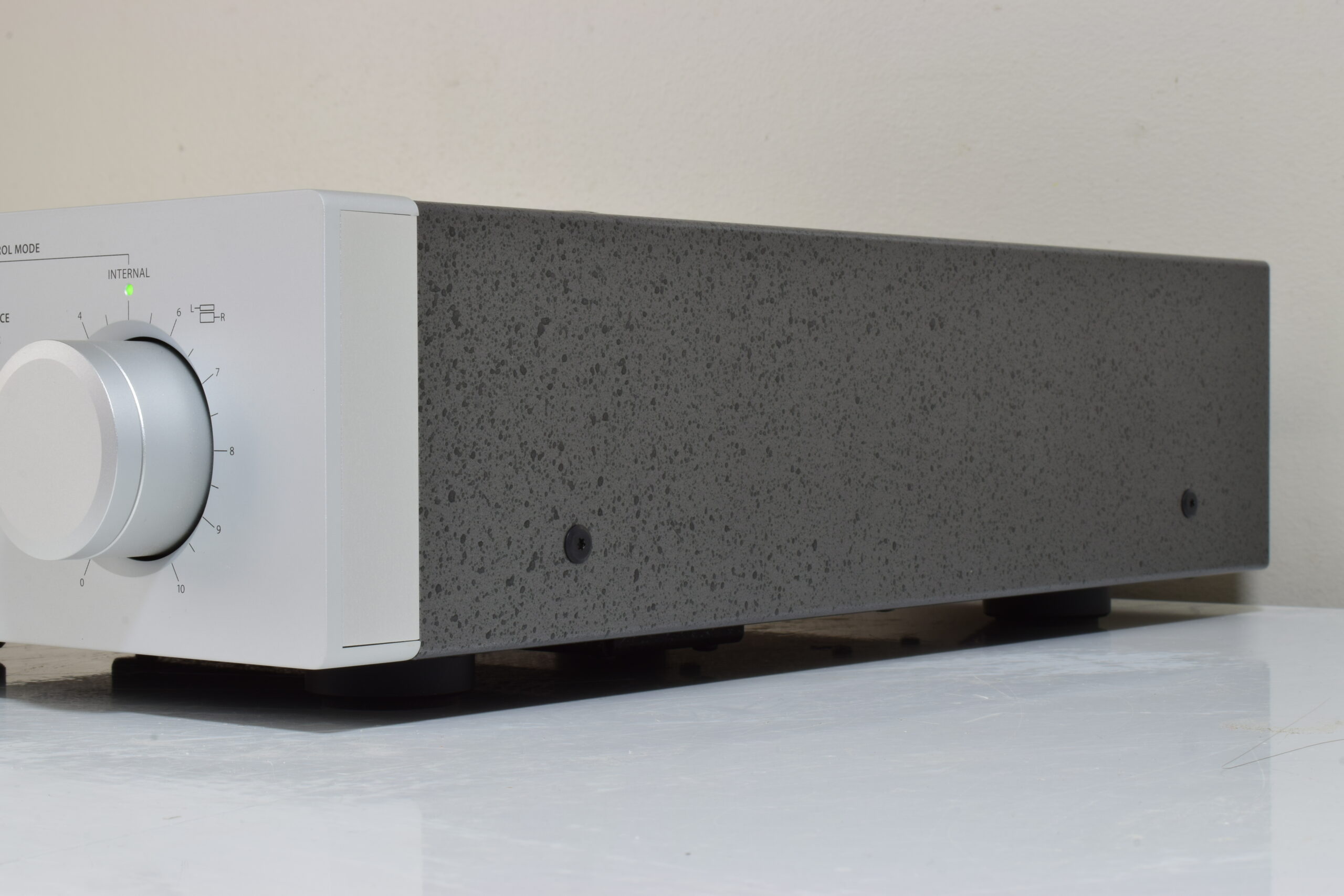

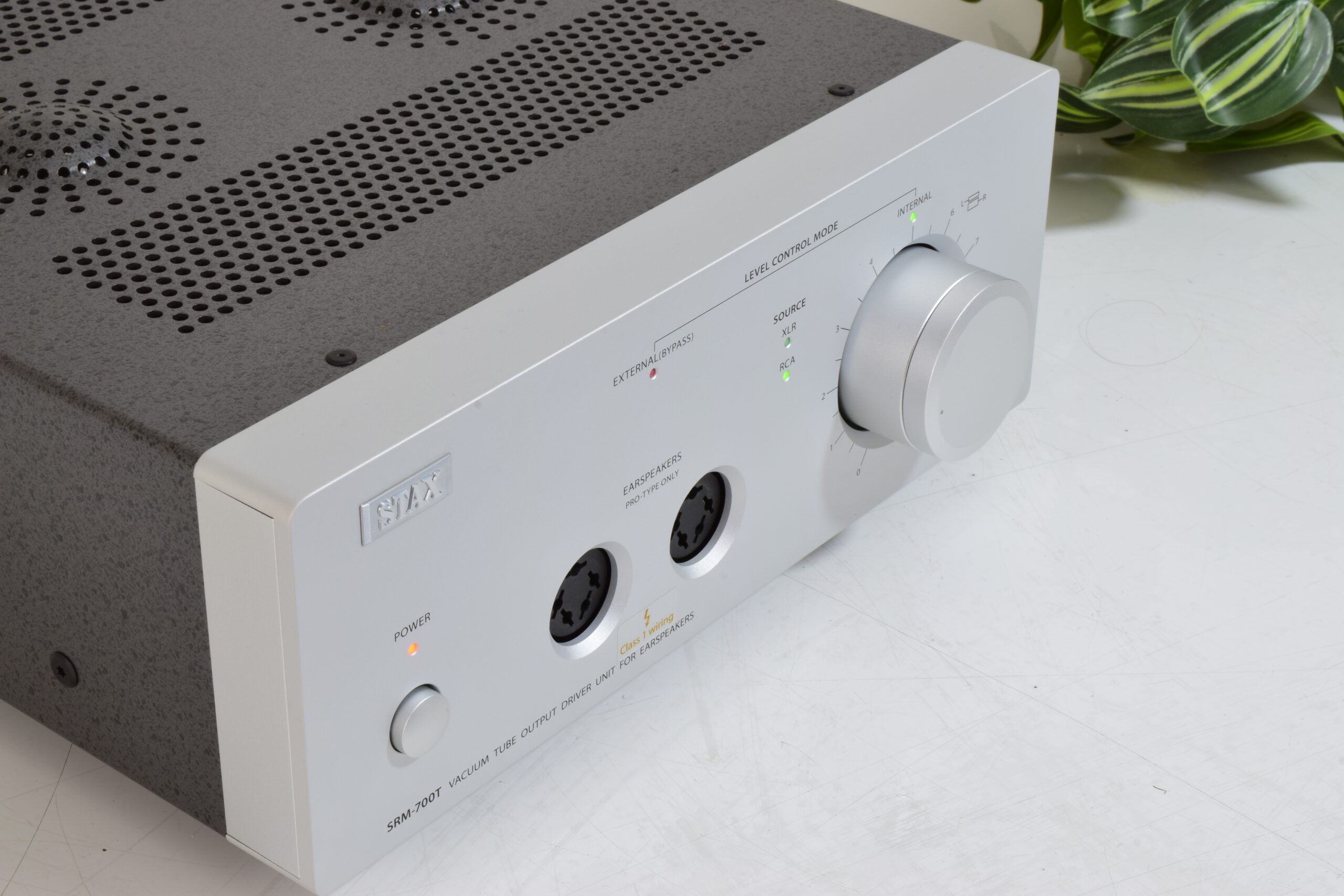

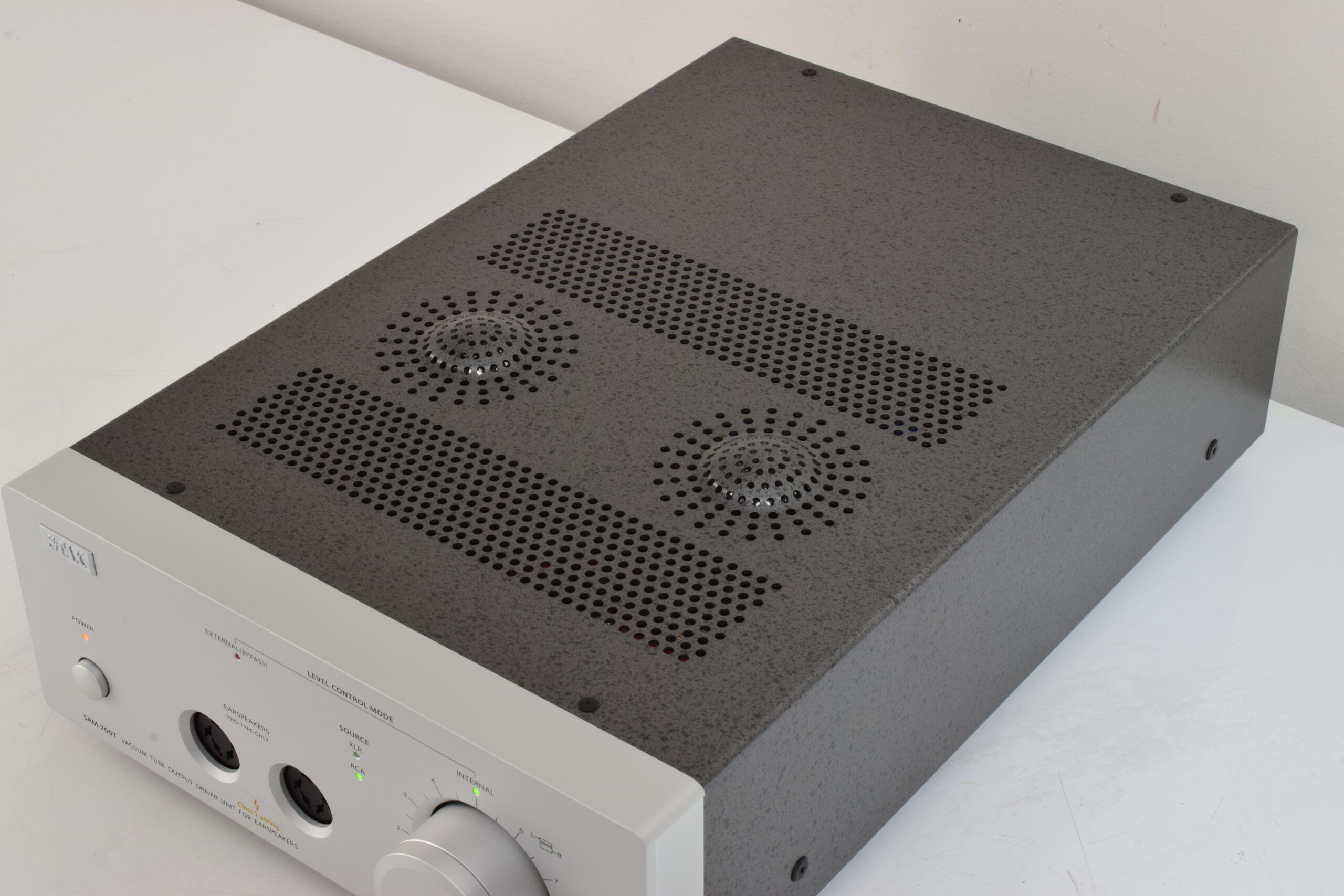

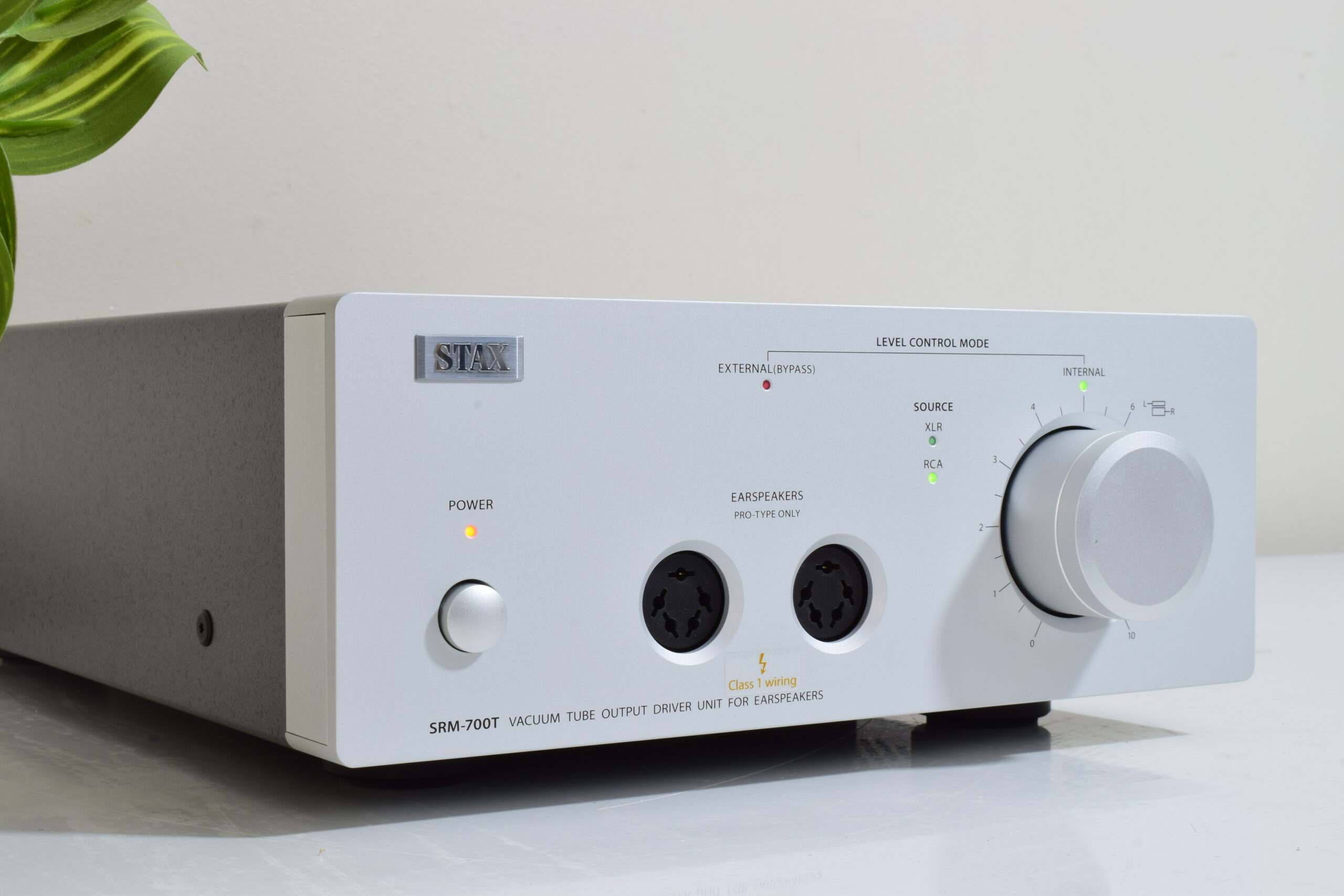

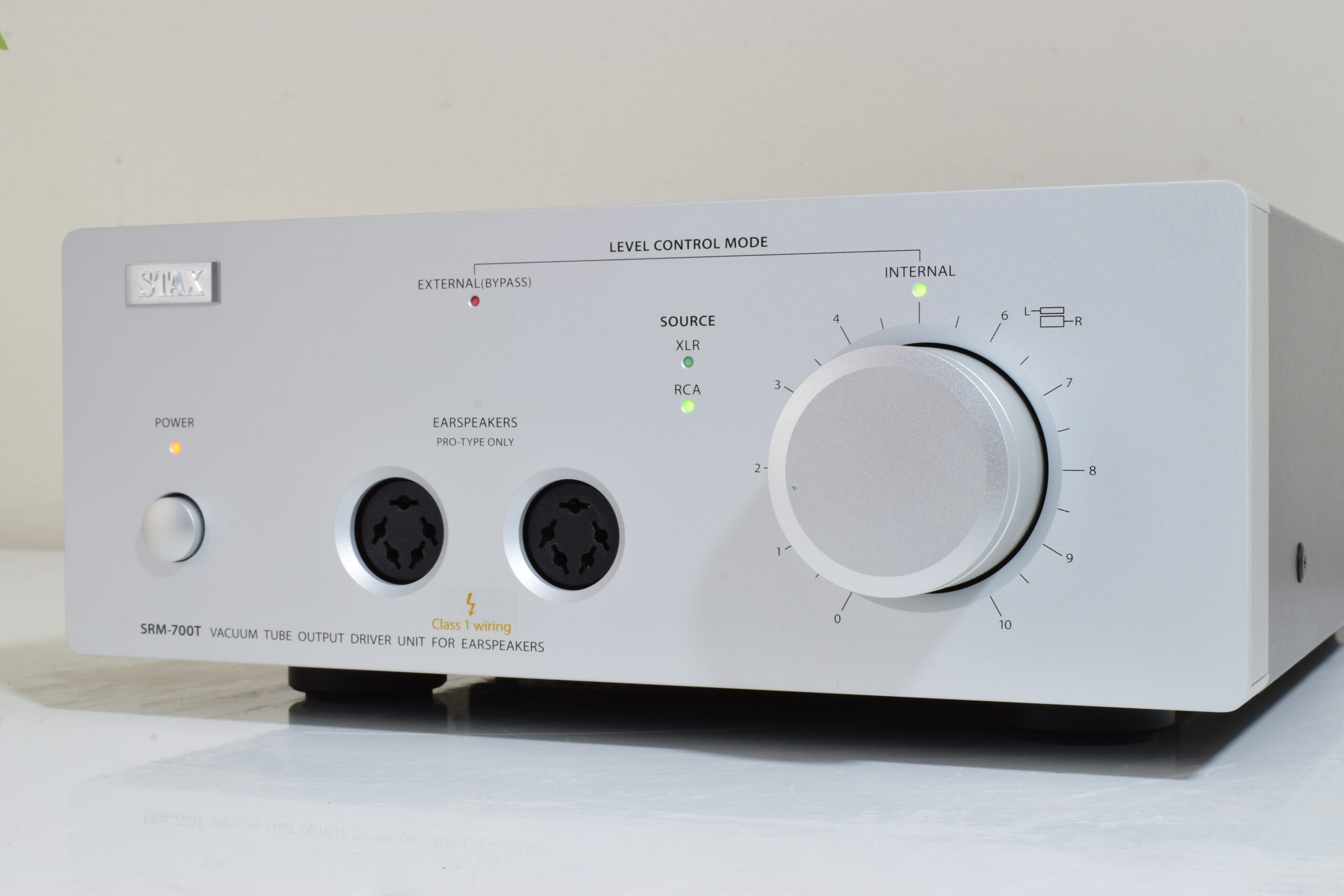

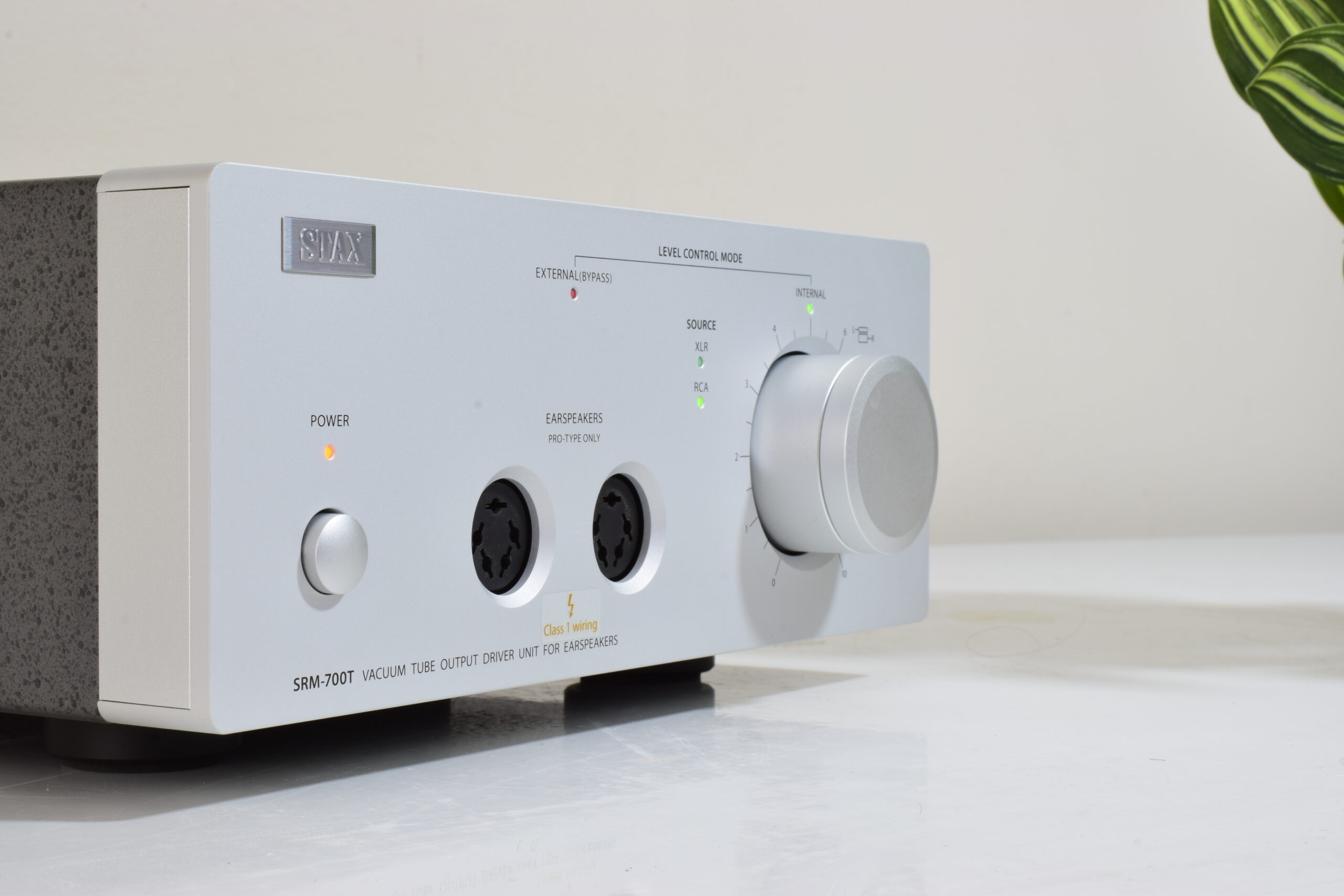

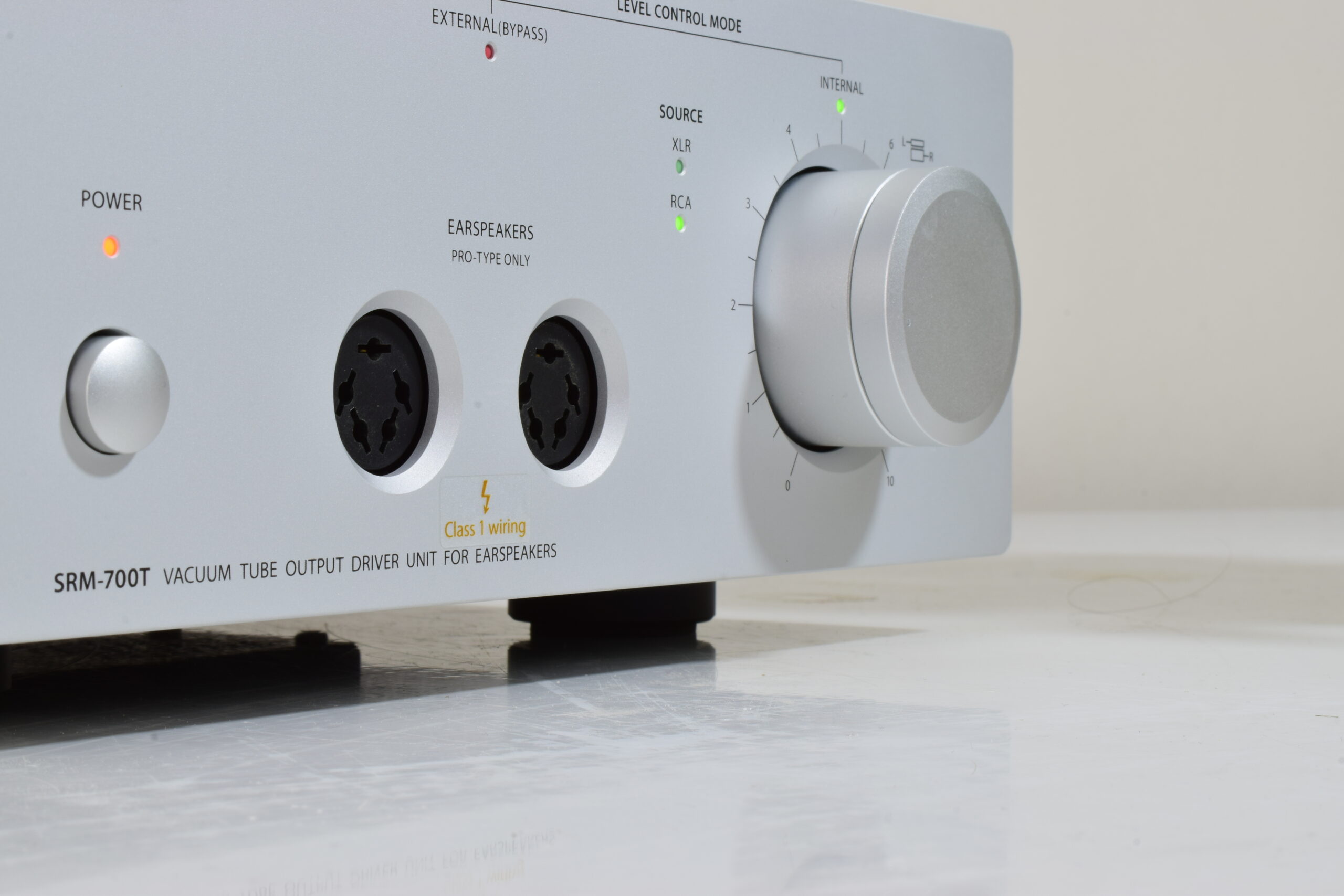

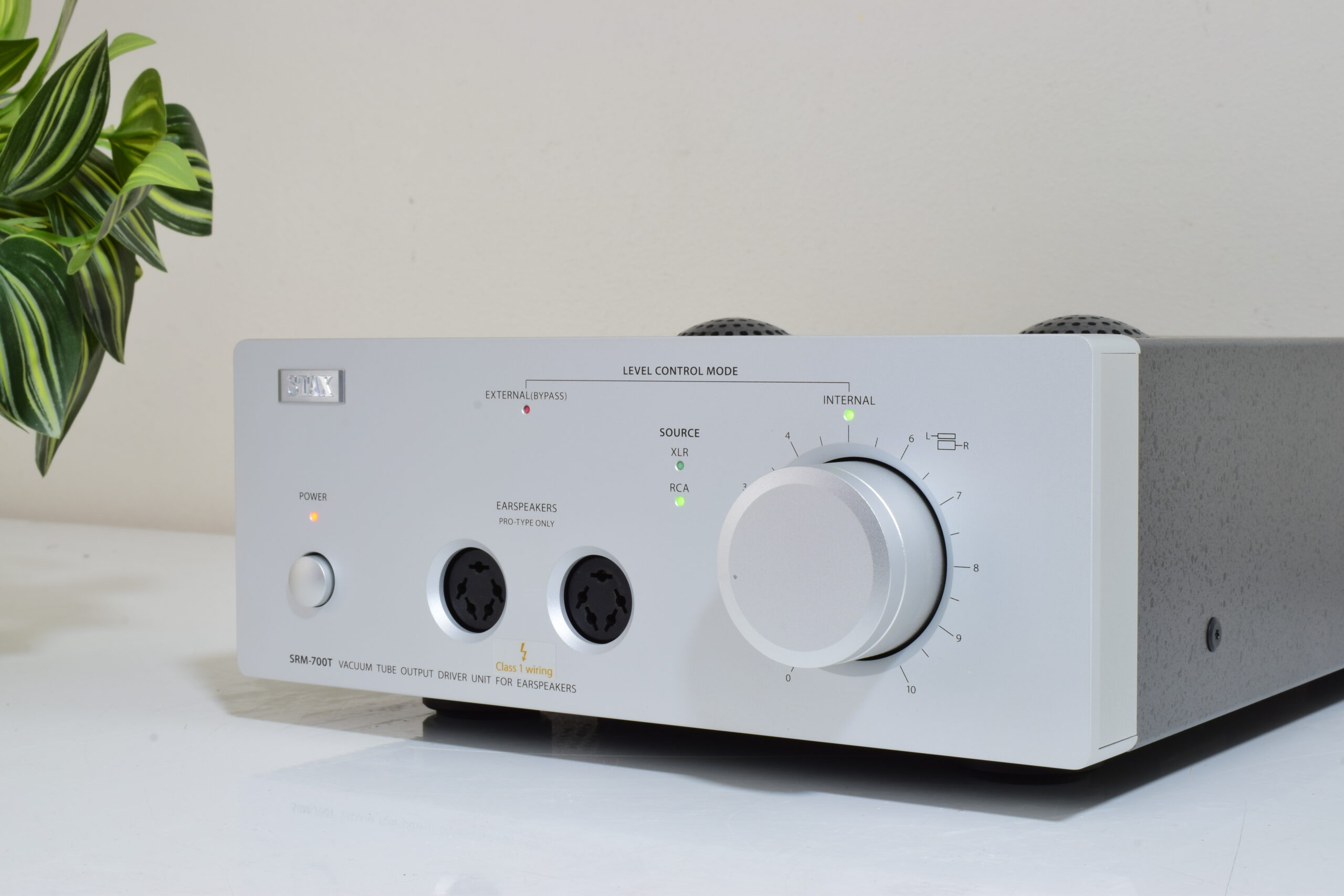

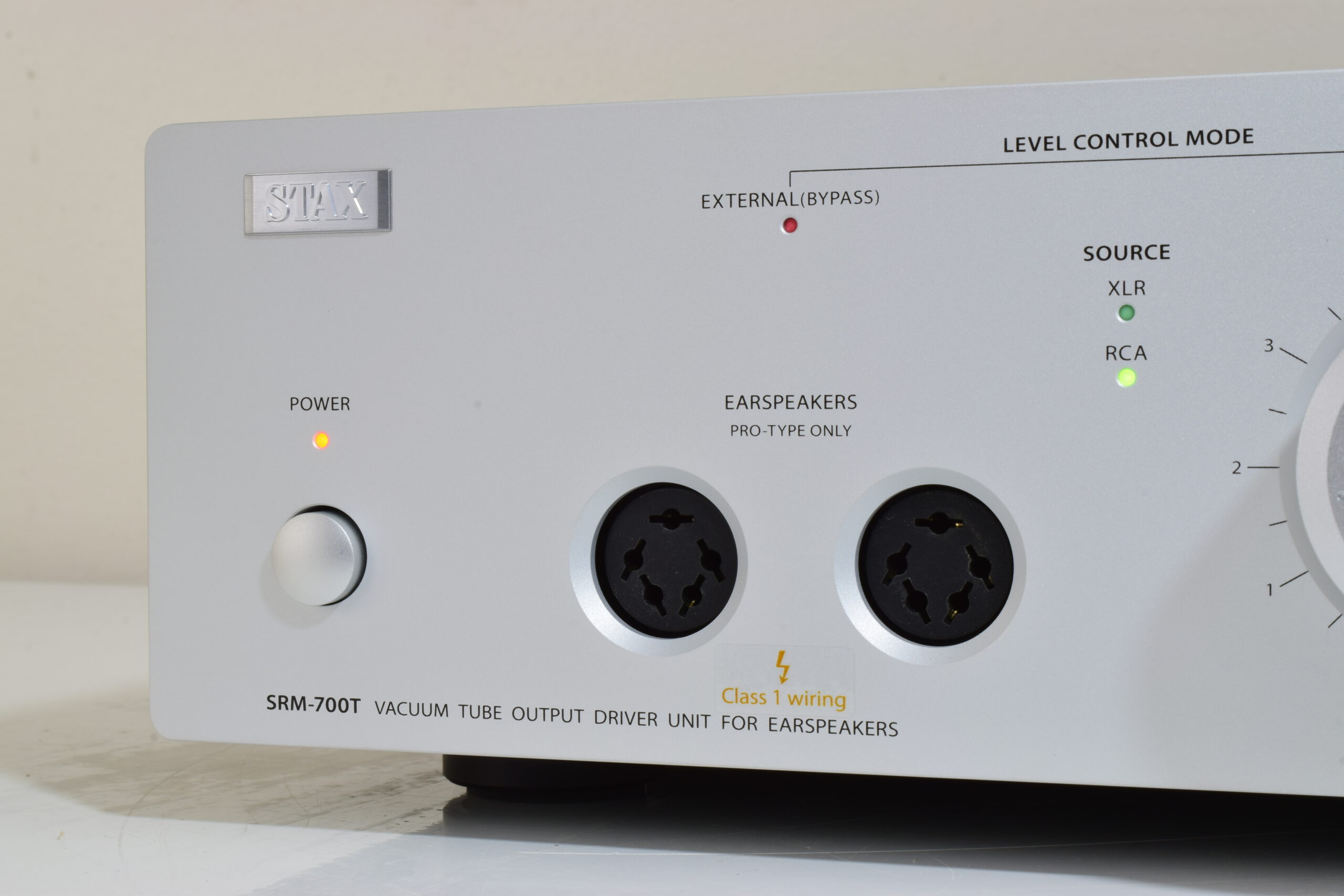

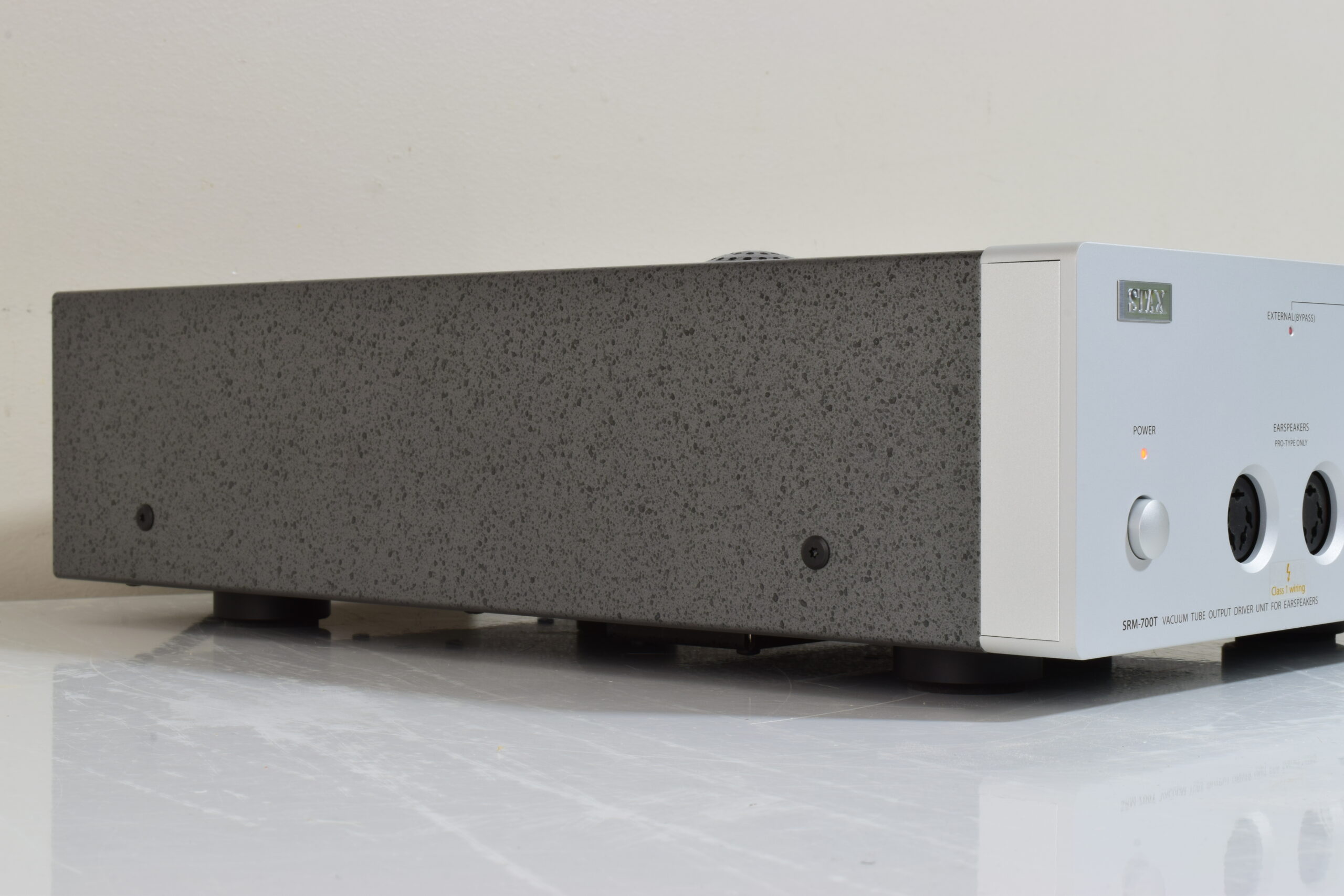

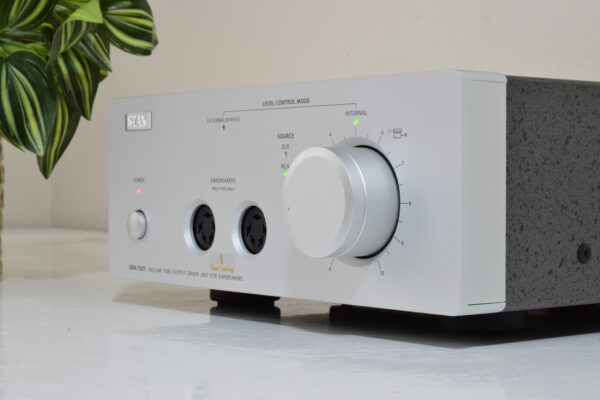

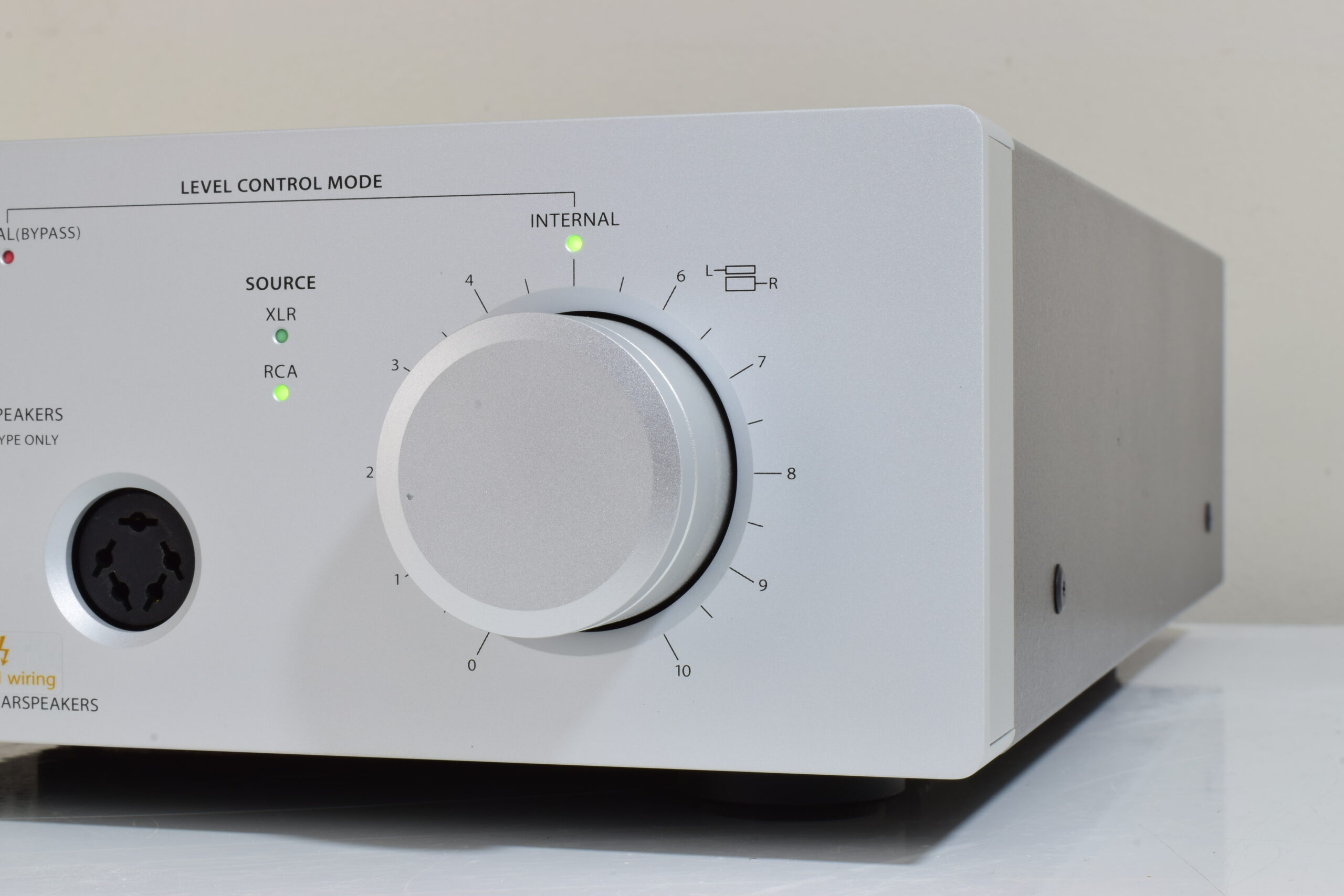

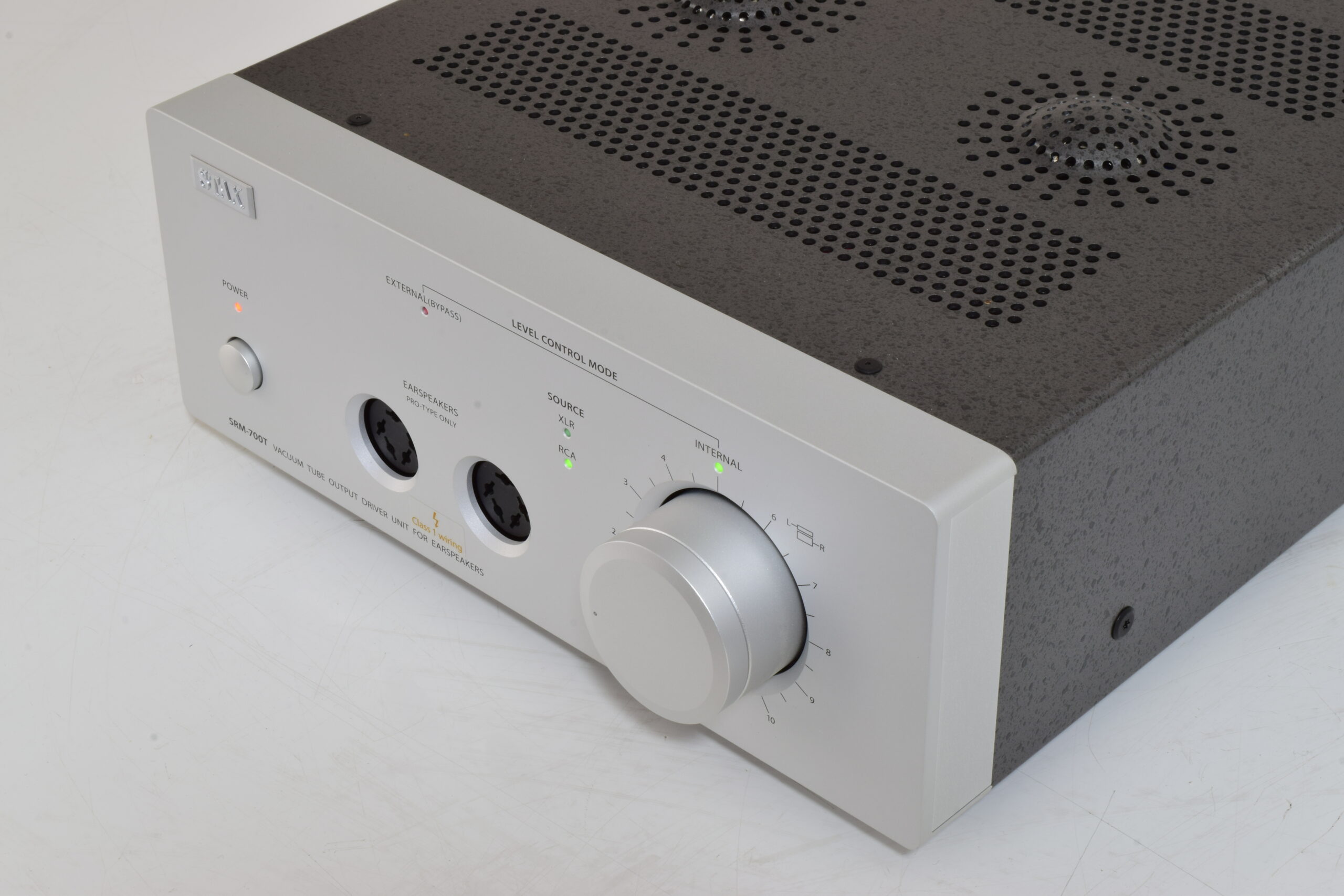

NB: PHOTO’S ARE OF ACTUAL ITEM – ALL IS IN BEAUTIFUL CONDITION.
